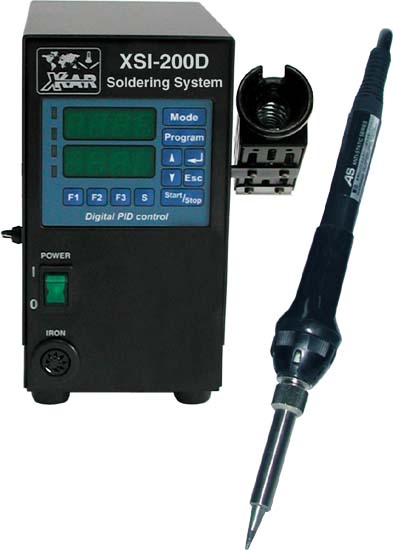

XSI-200D Digital Soldering Station |
XSI-200D Digital Soldering Station |
Ultra-High Performance PID tip temperature control system accurately measures and controls the actual tip temperature in real time. Temperature Sensor is attached to the cartridge tip end, which guarantees extremely accurate temperature setting and control.
Features: |
System includes: |
Technical Specifications: |
Input Voltage | 110-120, 220-240V AC |
Power consumption | 160 W |
Temperature Control System | µP PID Control |
Soldering Iron | Ceramic heater 24V / 60W |
Temperature Setting Range | Room temp. - 842°F (450°C) |
Insulation Resistance | Over 1000 MOhm |
Leakage Voltage | Less than 0.5 mV |
Earth Resistance | Less than 0.3 Ohm |
Ripple Temperature Without Load | Less than ±1ºC |
Weight | 3 lbs. (1,4 kg) |
System dimensions | 3.5" x 6.5" x 6.5" (80 x 160 x 160 mm) |
Packaged weight | 5.2 lbs. (2,4 kg) |
Optional Equipment: |
Interested
Companies to distribute this product in their countries are welcome to contact: czes@bokar.com or call USA at (570) 842-2812 This is a tool which is designed to make SMT rework easier, less time consuming and properly done to guarantee appropriate process control. |
