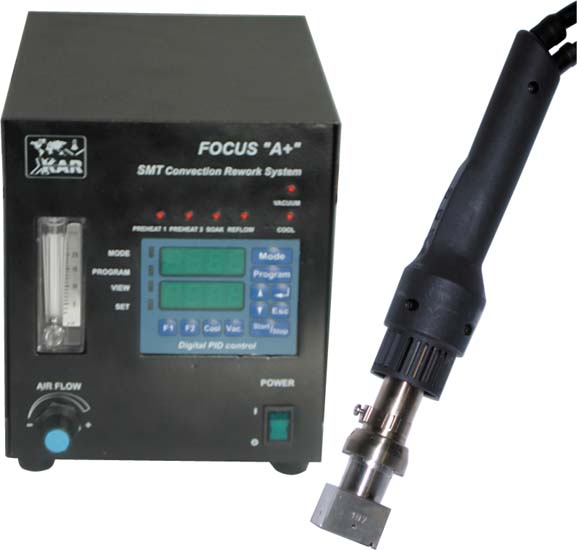

FOCUS A+ Programmable SMT Rework/Repair Unit / Rework Systems Controller
| System includes: |
- FOCUS A+ - Basic Unit with integral XHT-12 Hot Air Tool
- XTH-1 - Tool Holder for XHT Series
- XQF - Quick Connect for easy attachment of nozzles
- XVCS-5 - Vacuum Cup Set (5 vacuum cups, 3 sizes)
- XT-1 - Vacuum Cup placement/removal tool
- XNR-2 - Hot Nozzle Handling Cup
FOCUS A+, the newest system in the industry, offers total process control and best performance among convection Rework/Repair Tools. As the only system in its class can pre-program both top and bottom heating in individual zones. It is simple and easy to use. It has five time/temperature zones to accommodate lead-free solder profiling requirements (four heating and one cooling zone). When used in conjunction with X-1001 Series Pre-hearers or SMT-ServiCE Rework units offers 10-zone control 5 top and 5-bottom temperature settings during the rework process. For someone who really wants to bring the rework to a science, the unit has an extra mode to work in 10 zones (control the temperature rise in each of the 5 zones and maintain the reached temperature for preprogrammed period of time).
Features:
- Removes and replace discrete, SOIC, PLCC and QFP components and other SMD components
- Closed-loop, variable temperature control
- Fully grounded and static-safe system
- Optical isolation with zero voltage switching
- Over 50 nozzles available
| Technical Specifications: |
| Input Voltages | 110-120, 220-240V AC |
| Power Consumption | 500 W |
| Fuse | 8A
for 110-120V or 5A for 220-240V Slow-Blow 5mm x 20mm |
| Heater | Resistive, 450W line voltage |
| Heater Control | PID, Closed-Loop Thermocouple sensor feedback |
| Air Source | High efficiency diaphragm pump |
| Air Flow | Variable, 3 - 20 l/min, air flow controlled by the valve located on the front panel |
| Vacuum source | Diaphragm pump |
| Vacuum | 200mmHg (8" Hg) |
| Temperature | 70
ºC - 450 ºC (158 ºF - 842 ºF) |
| Weight | 10kg (22 lbs) |
| System dimensions | 150mm
x 220mm x 220mm (5.9" x 8.7" x 8.7") |
| Packaged weight | 12kg (26 lbs) |
| Optional Equipment: |
XN Series - Focus Series Nozzles |
|
|
|
| XCB-1R - Cord connecting FOCUS A+ with Preheater Based Rework System SMT-SerwiCE or Preheaters X-1000. | |
