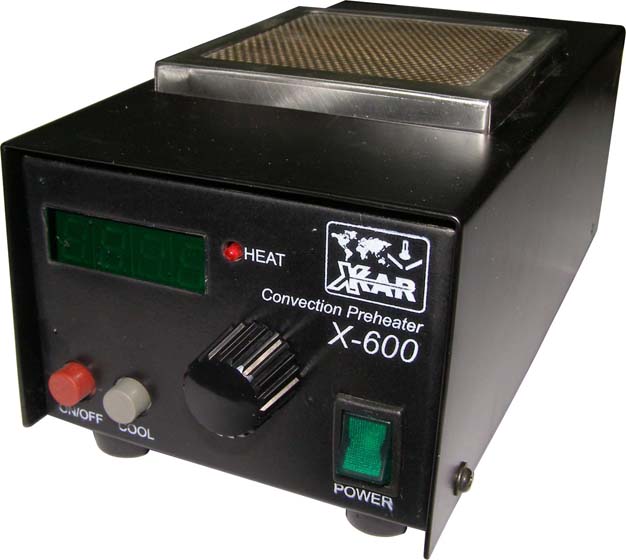

X-600 Medium Size Digital Convection PCB Pre-heater
The X-600 PCB Pre-heater is extremely accurate. It has user adjustable off-set and unique acceleration mode to speed-up initial warm-up from a cold start at room temperature. The unit has a small foot-print to reduce the workspace required for SMT Rework and Repair. This design emphasizes on the accurate process control for the rework tasks.. Pre-heater Unit is microprocessor controlled to maintain accuracy and to extend heating element life.
  |
 |
| X-600 Medium size Digital Convection PCB Pre-heater | |
System Features:
- Microprocessor controlled by powerful firmware.
- High power, small area pre-heat chamber.
- ESD safe.
- Close loop temperature PID control maintaining set temperatures with high accuracy and extending heaters life.
- "Cool" function
- FOCUS link to connect with FOCUS top hot air systems.
- X-DataStore to connect with a PC.
- LED display: 4x7 segments.
System includes:
- X-600 Unit
- System Manual
- Warranty Card
Available models:
- X-600/230 - Small Digital Convection PCB Pre-heater, Supply Voltage 207-242V.
- X-600/115 - Small Digital Convection PCB Pre-heater, Supply Voltage 104-127V.
Technical Specifications:
| MODEL | X-600/230 | X-600/115 |
|---|---|---|
| Input Voltages | 207-242V AC | 104-127V AC |
| Power Consumption | 600 W | |
| System dimensions (W x H x D) | 4.1" x 3.7" x 7.9" (105 x 95 x 200 mm) | |
| Chimney dimension | 3.5" x 3.5" (90 x 90 mm) | |
| Preheat Temperature measured on a PCB | 140-302 °F (60 -150 °C) | |
| Average PCB preheat time to 150°C | Less than 2 min. | |
